Eagle PRO Pack 240 PRO

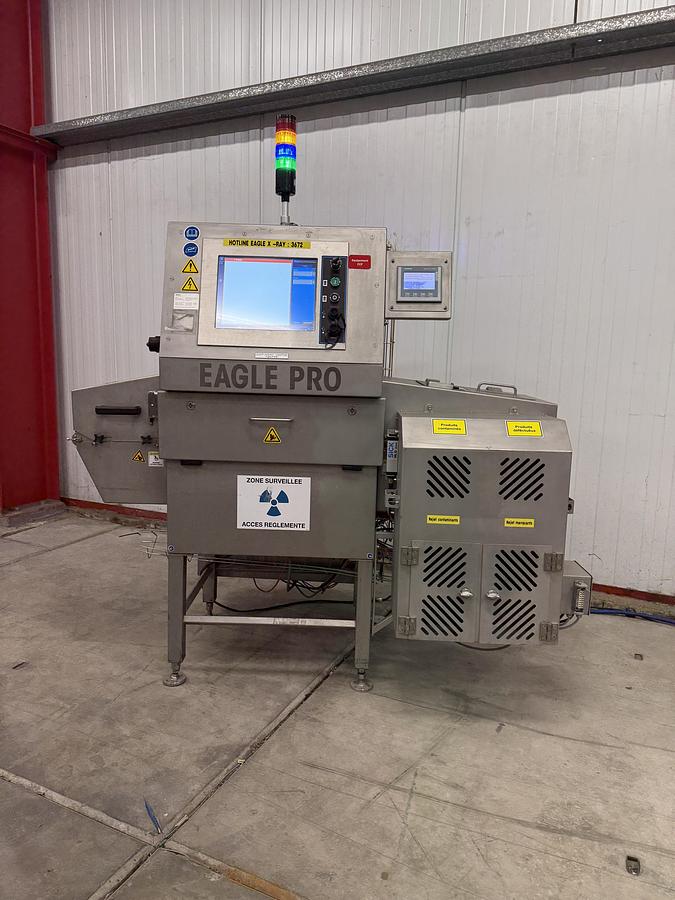

Eagle Pro Pack 240 PRO – Advanced X-Ray Inspection for Packaged Products

The Eagle Pro Pack 240 PRO is a high-performance X-ray inspection system designed for maximum product safety, quality assurance, and production efficiency.

Ideal for food, pet food, pharmaceutical, and consumer goods applications,

this system combines cutting-edge detection technology with robust industrial design.

Key Features & Benefits

• Reliable detection of foreign contaminants, even in dense or metallized packaging
• Multiple quality checks in a single inspection
• High inspection accuracy at high production speeds
• Hygienic, stainless-steel construction for demanding production environments

Technical Specifications

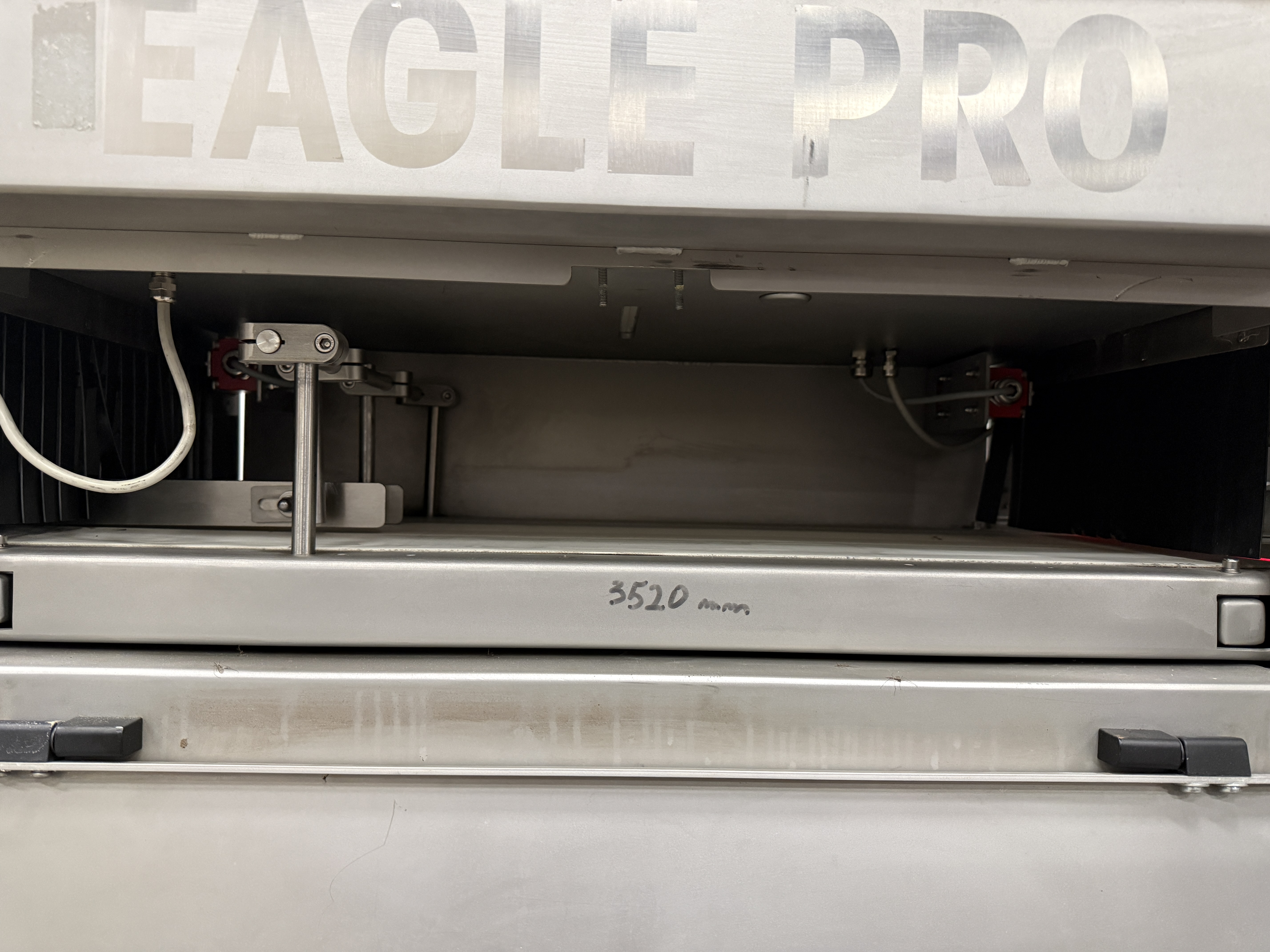

Inspection Area

• Maximum inspection width: up to 242 mm
• Maximum inspection height: up to 101 mm
• Conveyor width: approximately 298 mm

Detection Capabilities

• Detection of metal, glass, stone, mineral bone, and dense plastics
• Product integrity checks:
• Missing or broken items
• Shape and position verification
• Fill level and mass/weight control (2-, 3- or 5-zone analysis)

X-Ray Technology

• Detector resolution:
• Up to 0.4 mm (PXT™ dual-energy)
• 1.2 mm single-energy

Software & Controls

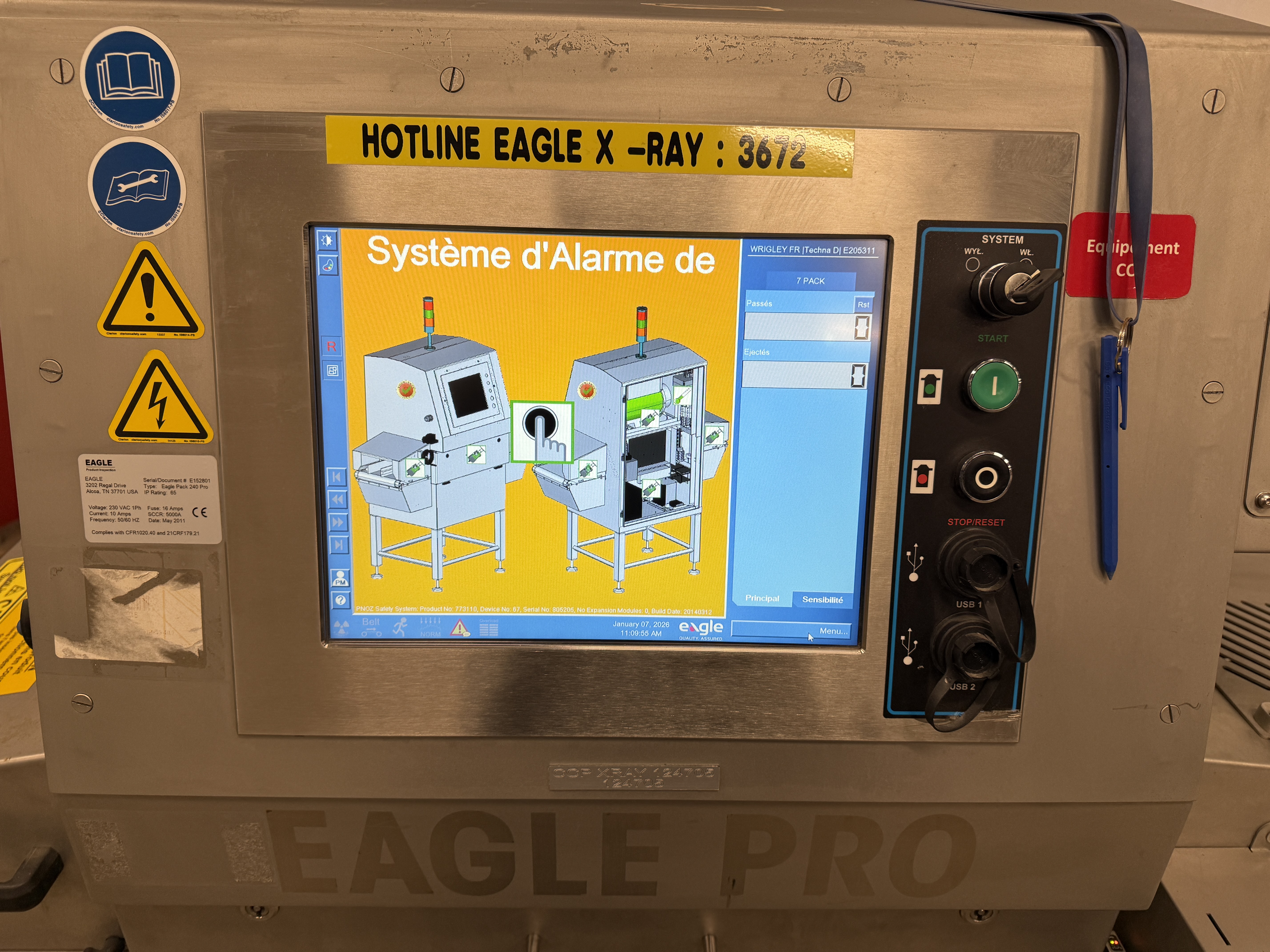

• 15” full-color touchscreen HMI
• Eagle SimulTask™ PRO image processing software
• Windows 10 Enterprise operating system
• Remote diagnostics via TeamViewer™

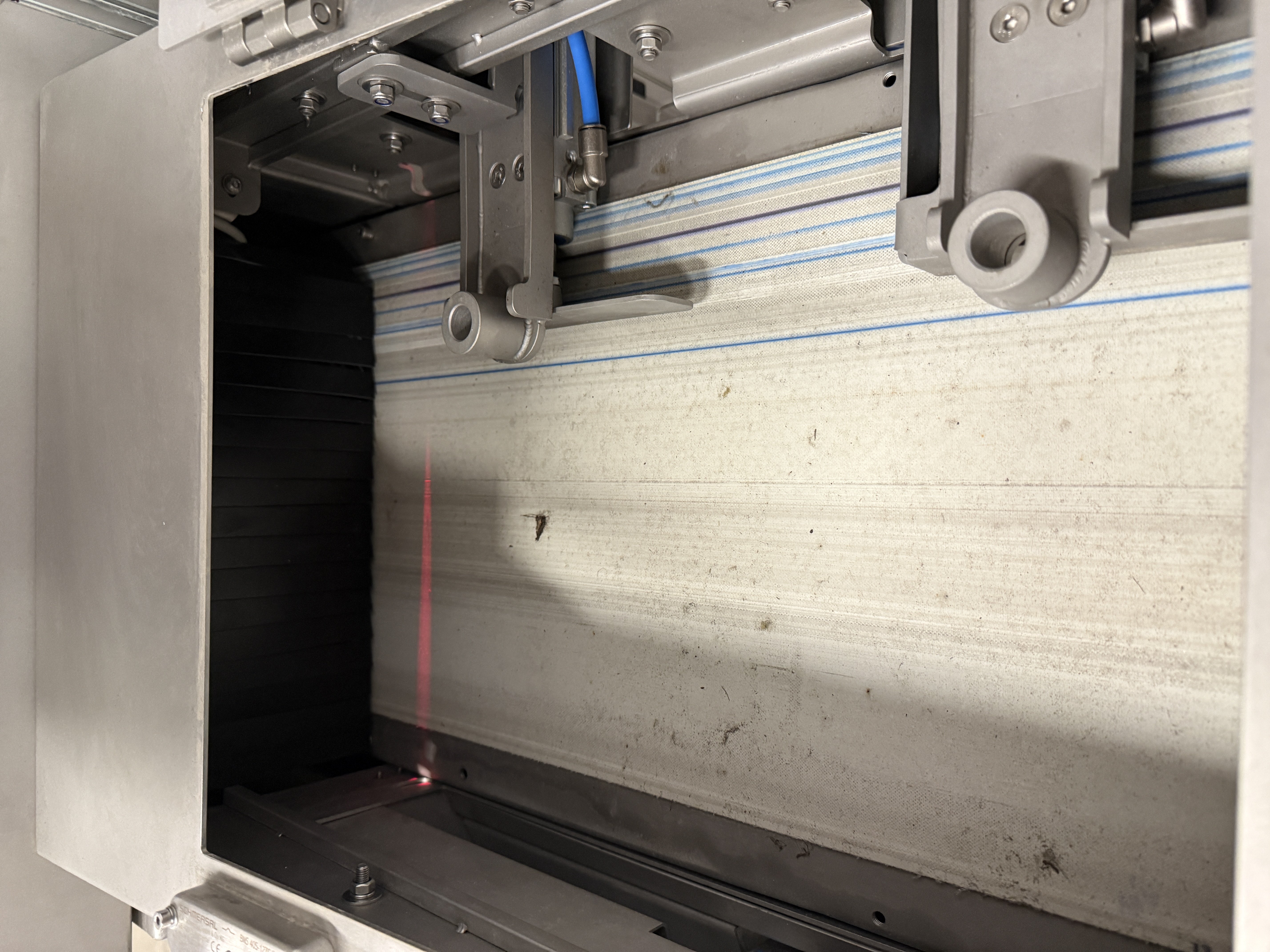

Conveyor & Speed

• Variable belt speed: 17 – 114 m/min, depending on configuration and product

Connectivity

• USB 2.0
• Ethernet 10/100/1000
• Optional EtherNet/IP Fieldbus integration

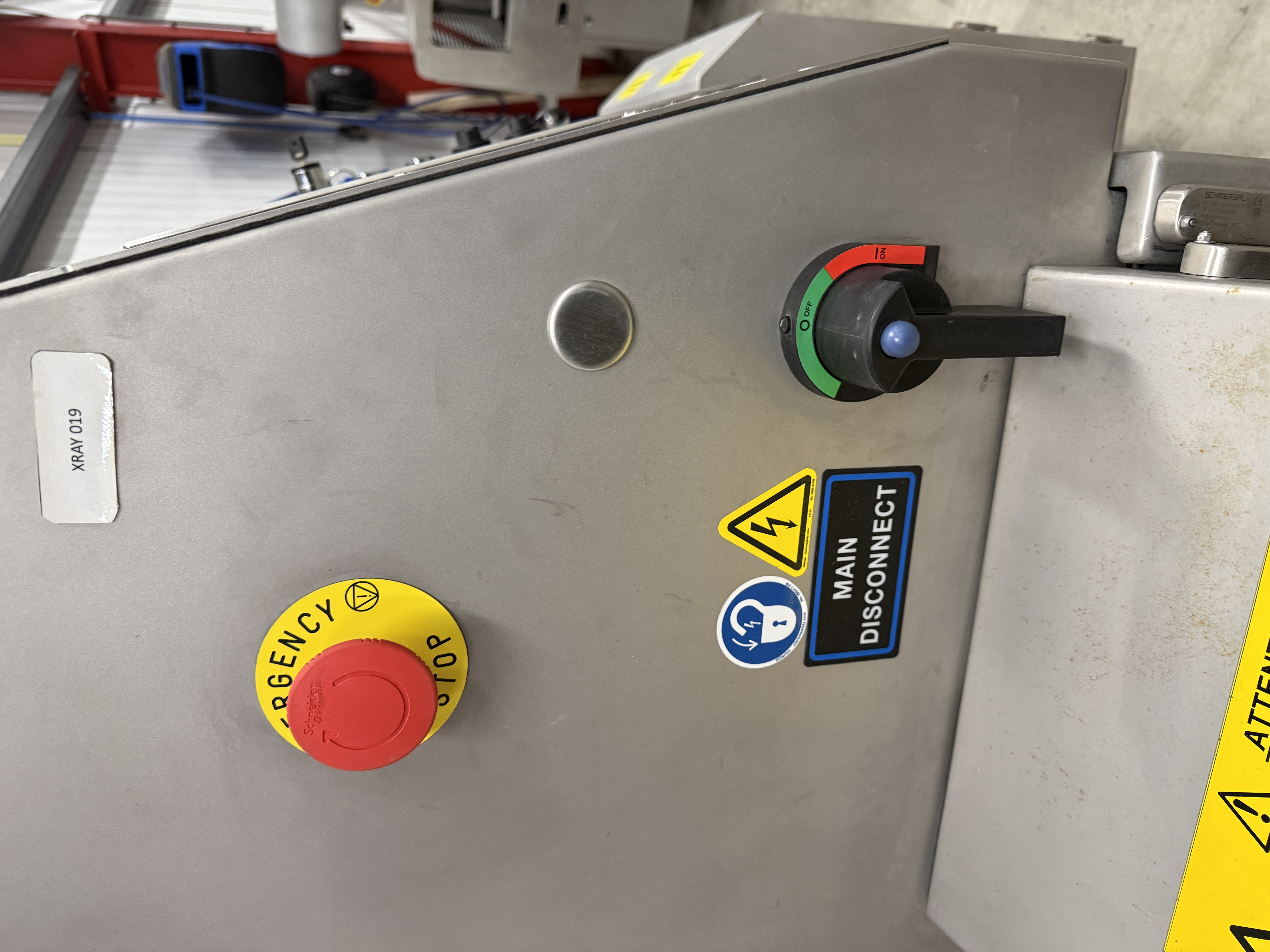

Construction & Safety

• Hygienic stainless-steel design (IP65/IP66 optional)
• Low radiation emission: < 1 µSv/h
• Compliant with international X-ray and electrical safety standards (CE / FDA)

Operating Conditions

• Operating temperature: 0 – 40 °C
• Power supply: 230 V AC, 50/60 Hz, single phase

Why Choose the Eagle Pro Pack 240 PRO?

• Superior detection performance
• Increased production uptime
• Reduced false rejects
• Designed for modern, high-speed production lines
