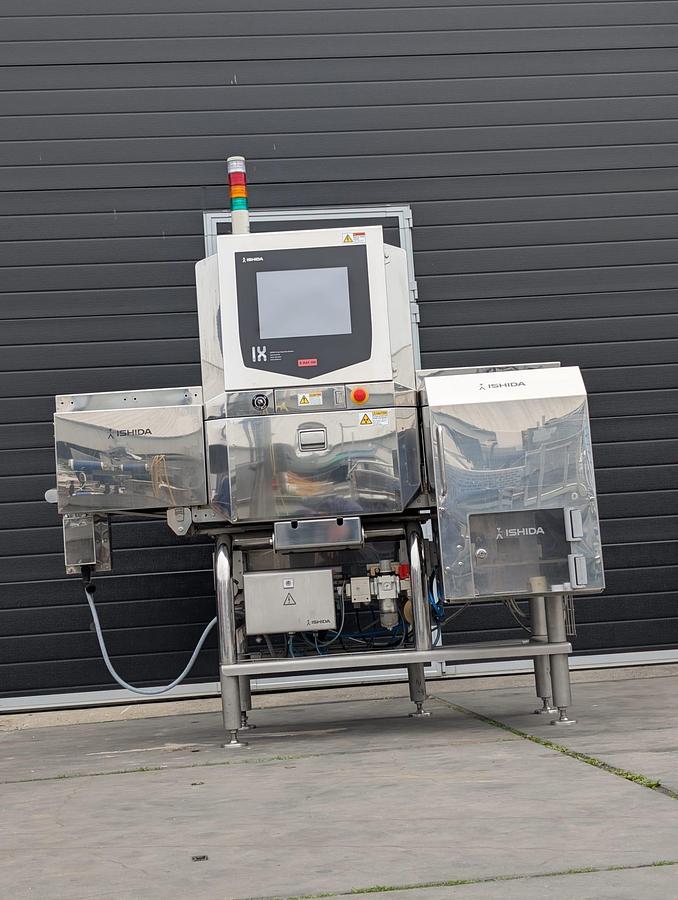

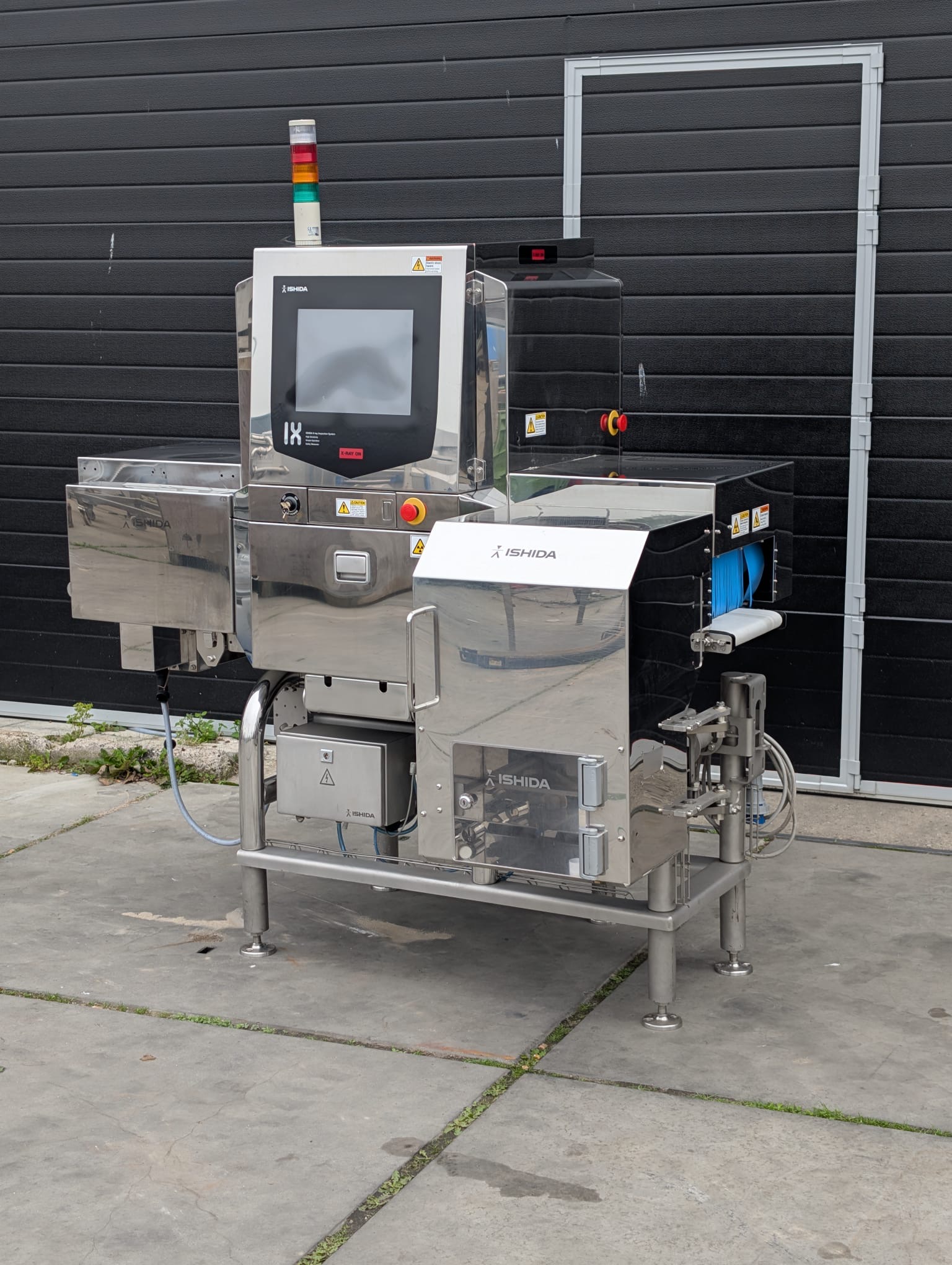

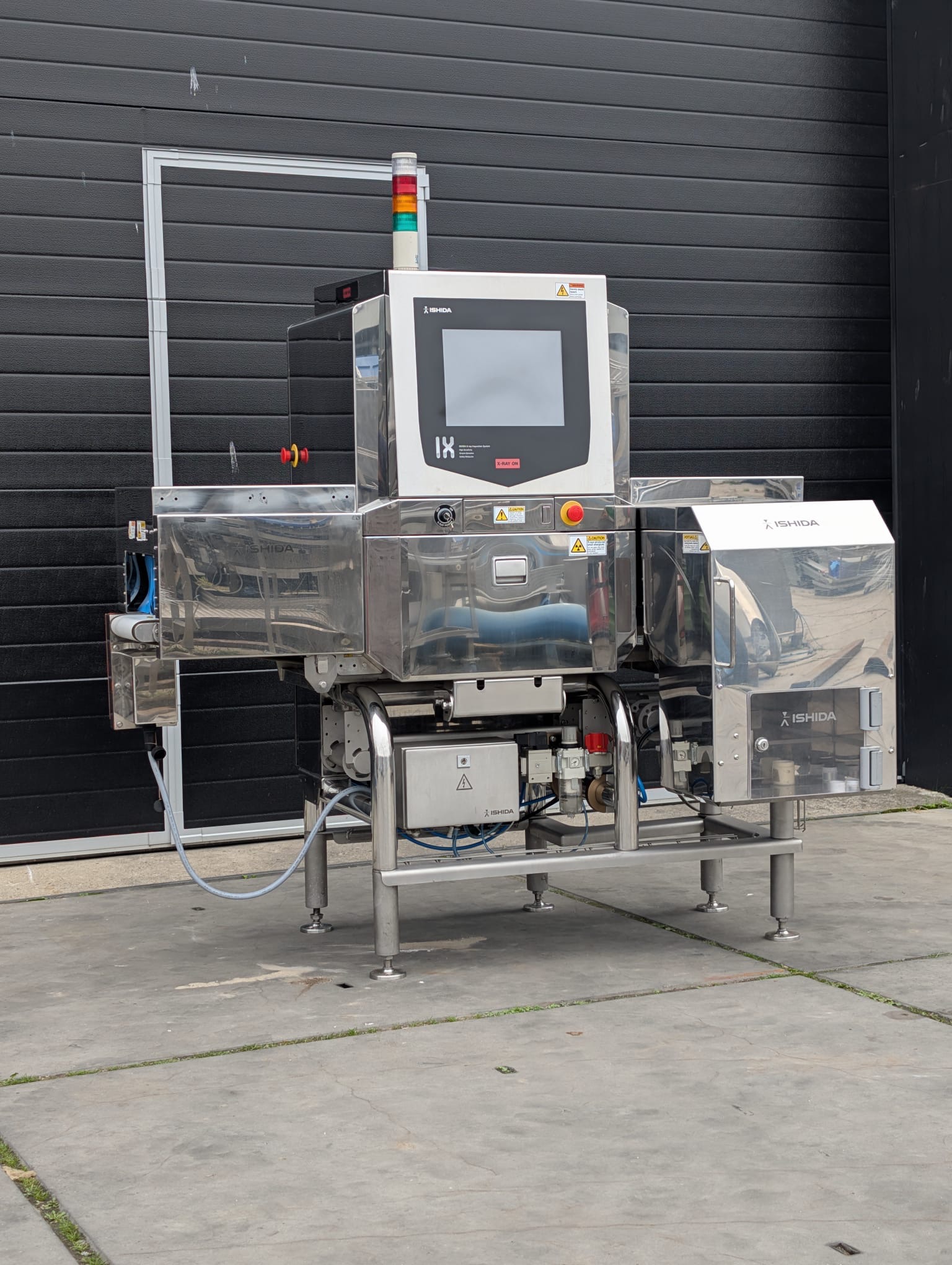

2015 Ishida IX-EN-2493-S X-ray inspection system
2015 Ishida IX-EN-2493-S X-ray inspection system
Contact us for price
Location:Emmeloord, Netherlands
Description

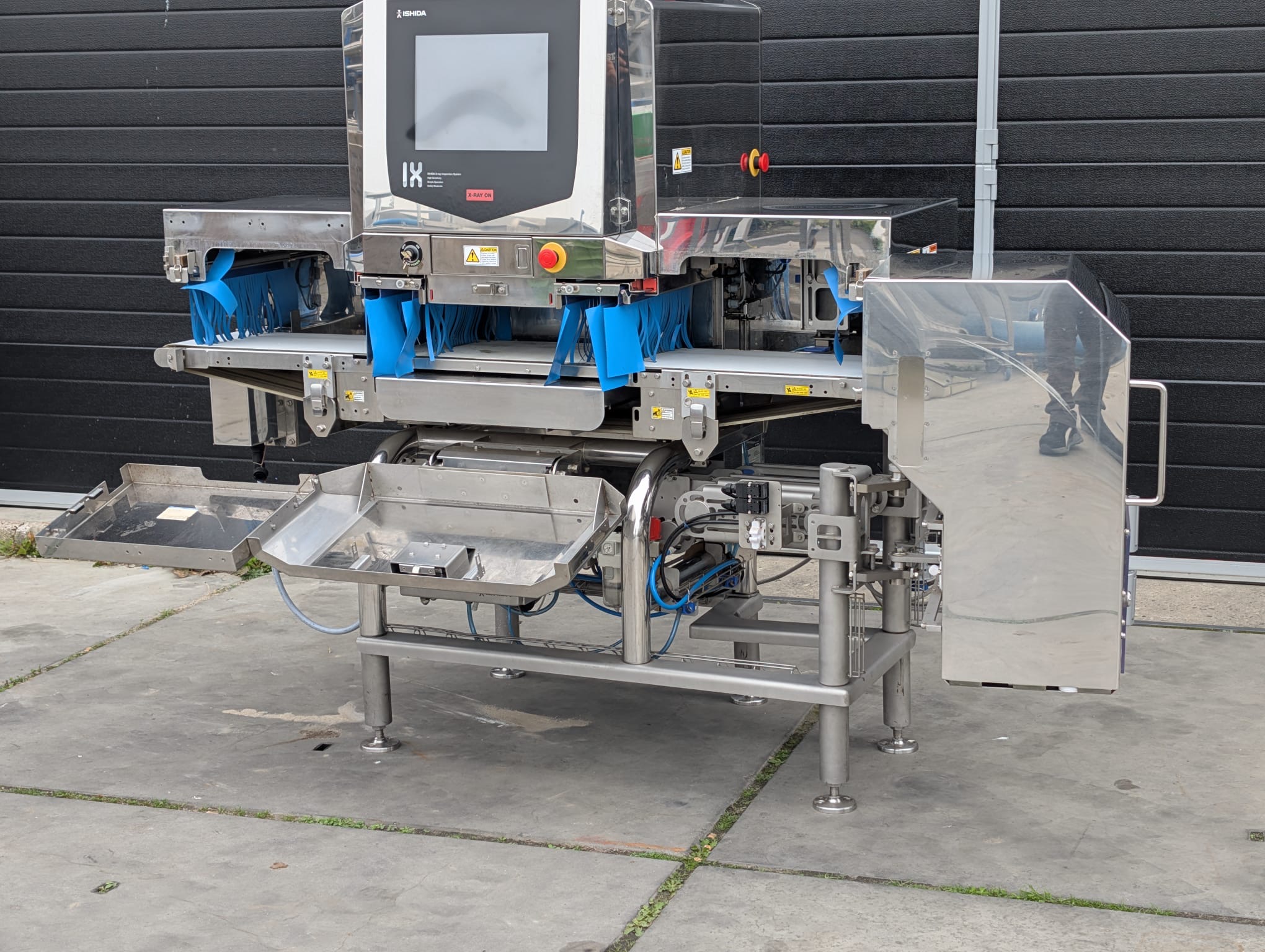

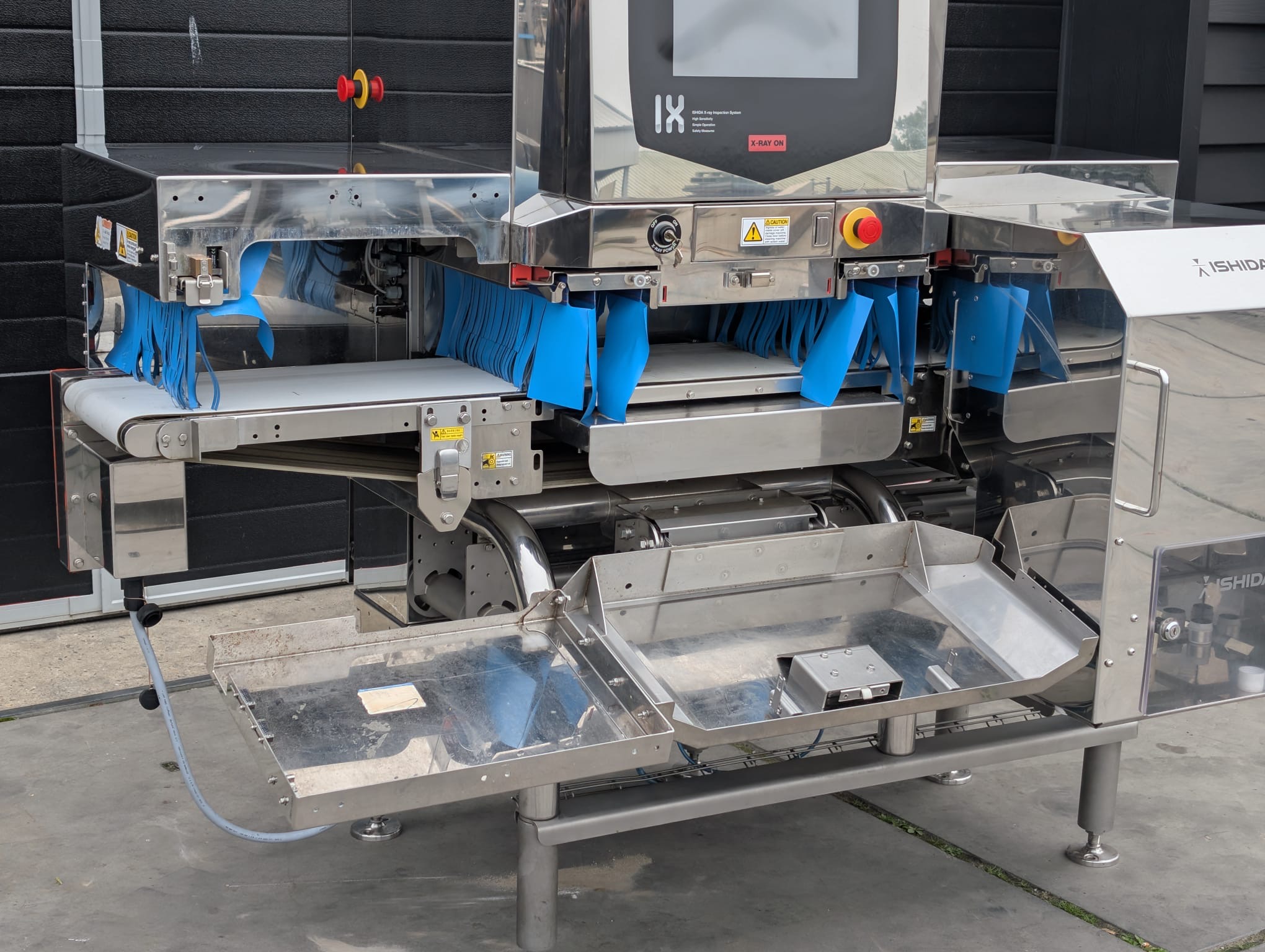

Compact X-ray inspection system for packaged food

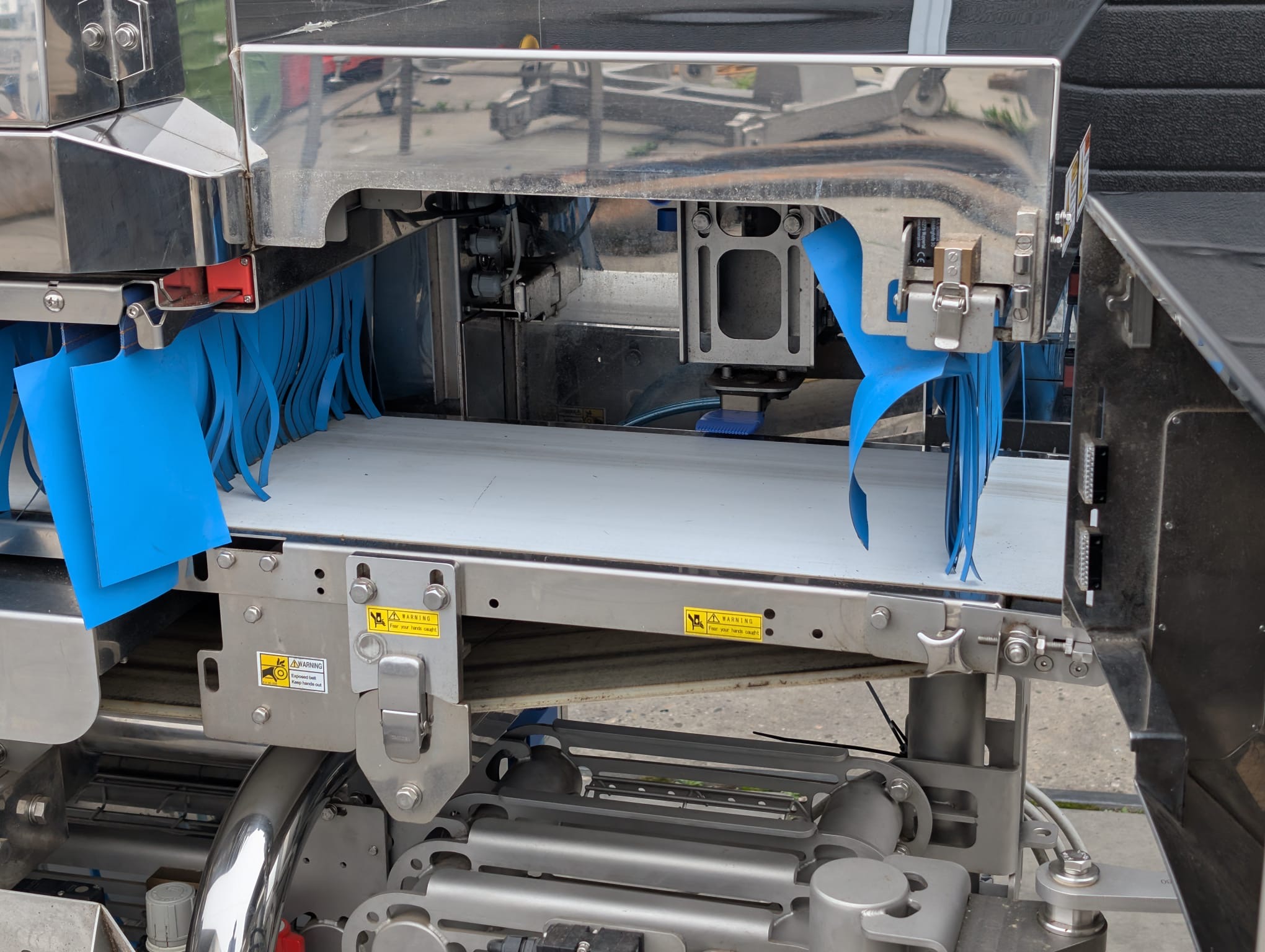

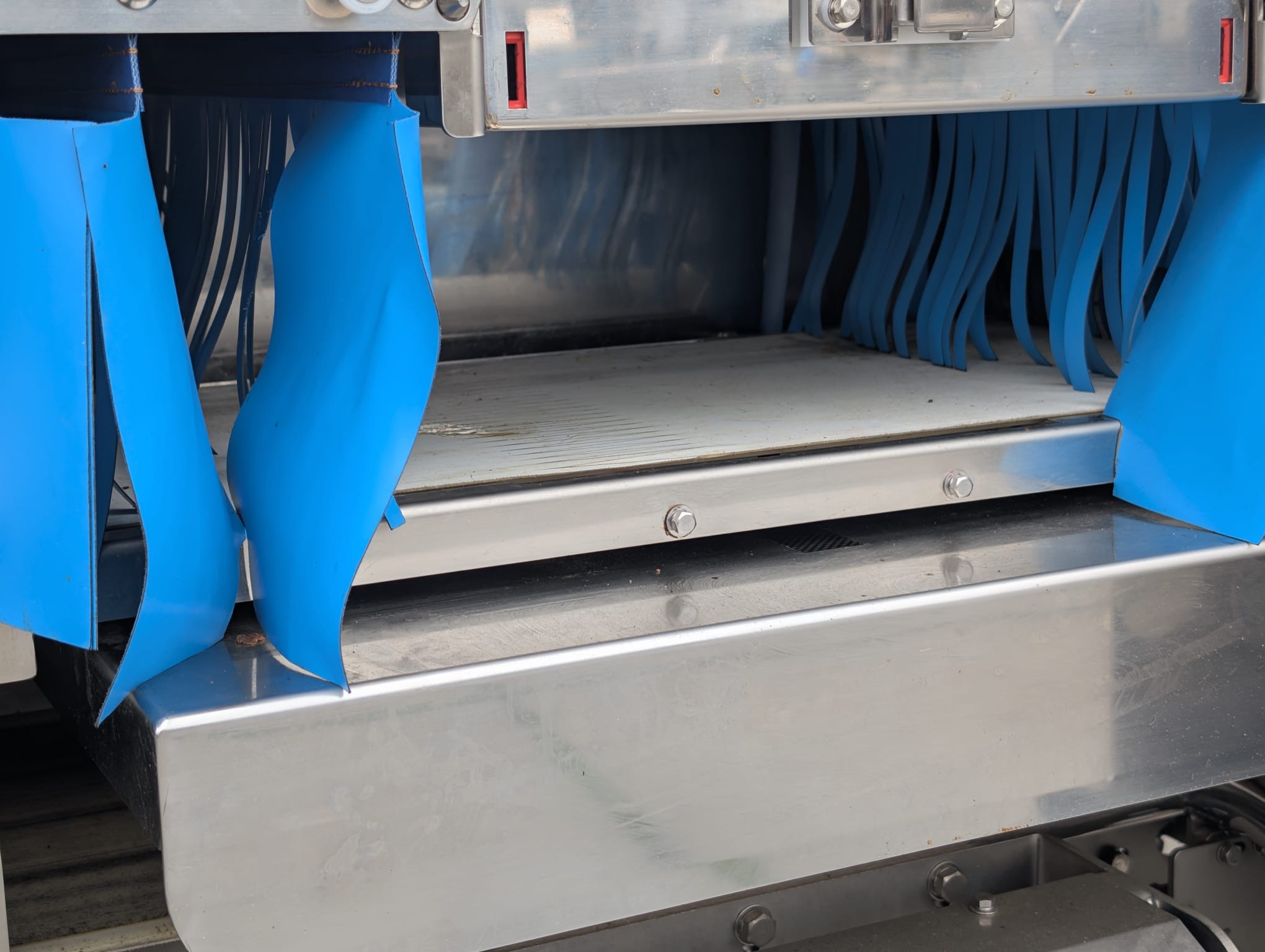

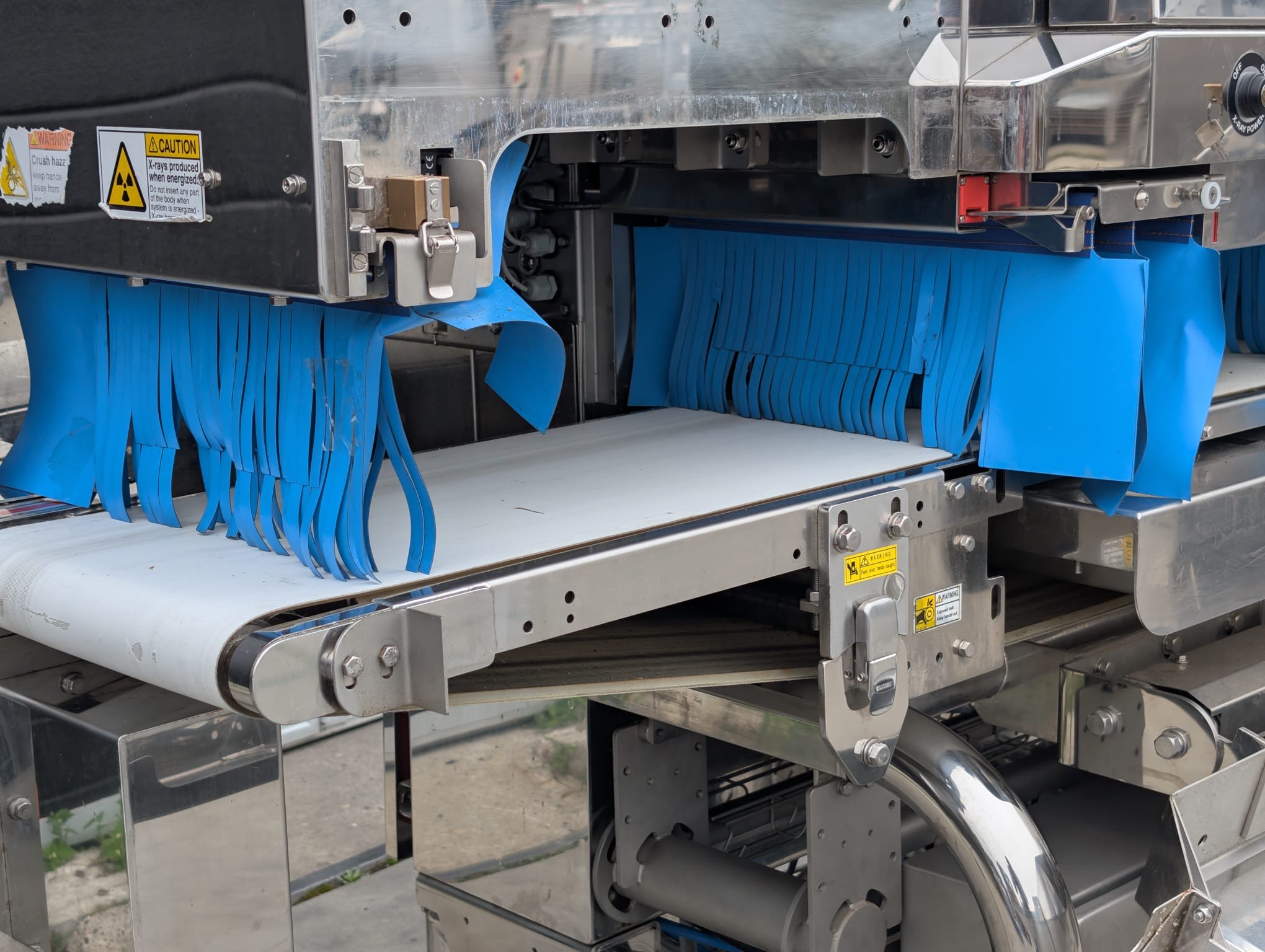

This Ishida IX-EN-2493-S is an X-ray inspection system built in 2015 by the Japanese manufacturer Ishida. It detects high-density foreign bodies in packaged products, such as ferrous and non-ferrous metals, stainless steel, glass, stone and bone. The tunnel is 240 mm wide and 150 mm high, the belt runs at a variable 10 to 60 m/min and handles products up to 5 kg and from 20 to 450 mm long.

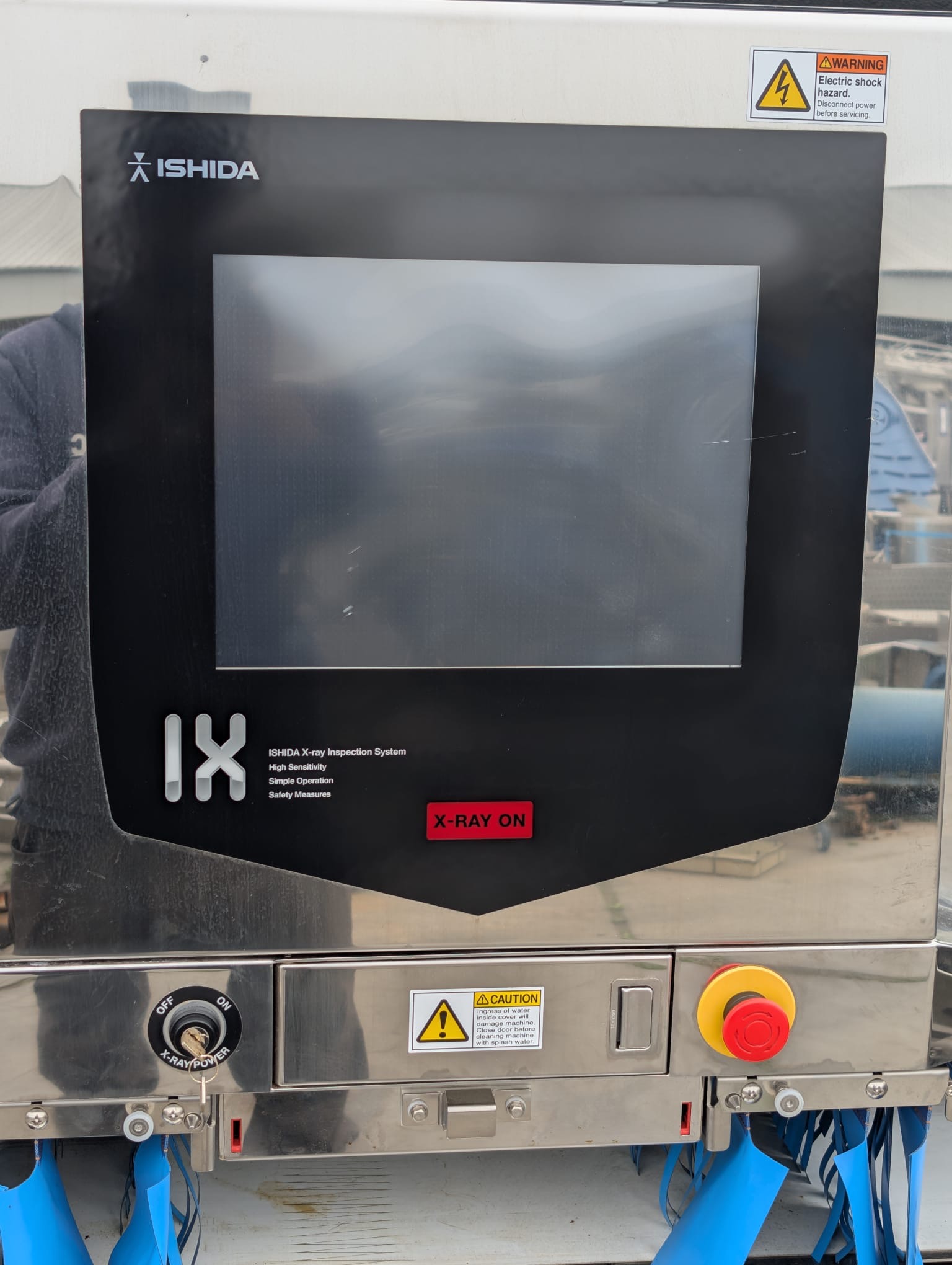

The machine is built in stainless steel (SUS304), has an IP66-rated inspection chamber and is operated via a 15-inch touchscreen. The line sensor has a resolution of 0.4 mm. Actual detection sensitivity depends on the product, its dimensions, the packaging and where the contaminant sits.
Located in Emmeloord, the Netherlands. Immediately available, price on request.
More photos and full specifications: https://stcfoodsolutions.nl/en/machine/2015-ishida-ix-en-2493-s-x-ray-inspection-system/
Specifications
| Manufacturer | Ishida |
| Model | IX-EN-2493-S |
| Year | 2015 |
| Condition | Used |
| Serial Number | 100225132 |
| Stock Number | 2466 |
| Type | X-ray inspection system |
| Tunnel size (w × h) | 240 × 150 mm |
| Belt speed | 10–60 m/min |
| Max. product weight | 5 kg |
| Product length | 20–450 mm |
| X-ray power | max. 150 W (30–75 kV, 1–3 mA) |
| Line sensor resolution | 0.4 mm |
| Controls | 15-inch touchscreen |
| Construction | Stainless steel (SUS304), IP66 |
| Dimensions (l × w × h) | approx. 800 × 745 × 1,745 mm |
| Weight | approx. 265 kg |
| Power supply | 15-inch touchscreen |
